Warning location

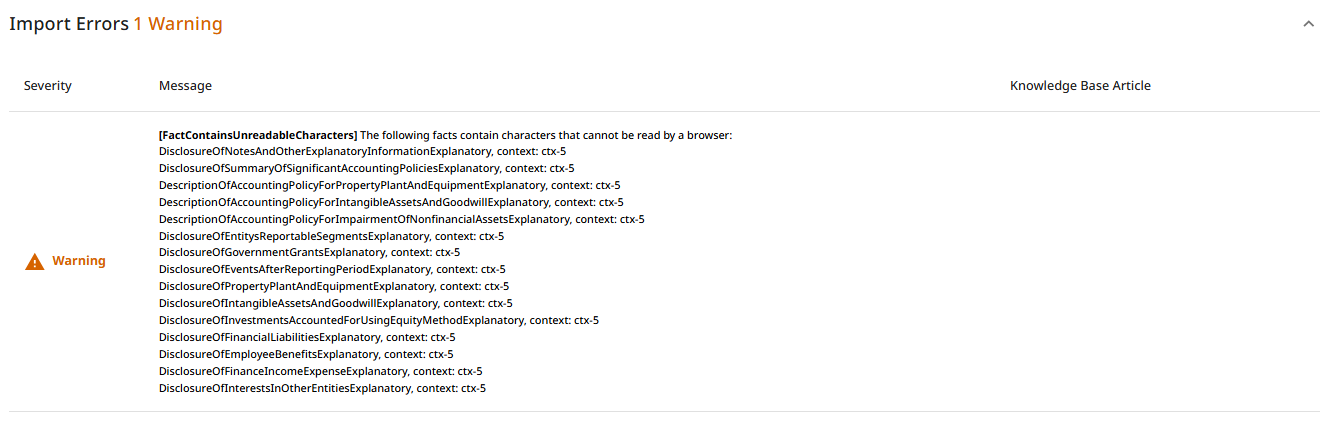

This warning message is located in Import Errors:

Explicação do aviso

Esse aviso é acionado quando o relatório contém caracteres que não são reconhecidos pelo sistema e não podem ser convertidos em xHTML.

Certain features or techniques used during the creation of the visual file are compatible with PDF format, but may not function correctly in xHTML, which can affect text extraction. These non-recognizable graphical elements are displayed as empty square characters (□), in the data extracted to the technical aspect of the final report.

Os problemas mais comuns vêm dos seguintes recursos implementados no arquivo fonte:

• Ligaduras

• Espaços não quebráveis
• Recursos de texto aberto
• Marcadores

Como resolver isso

1. Primeiro, você precisa localizar a origem do problema seguindo o manual passo a passo abaixo:
2. Convert your Excel template and PDF report on the Workiva Report Tagging Tool.

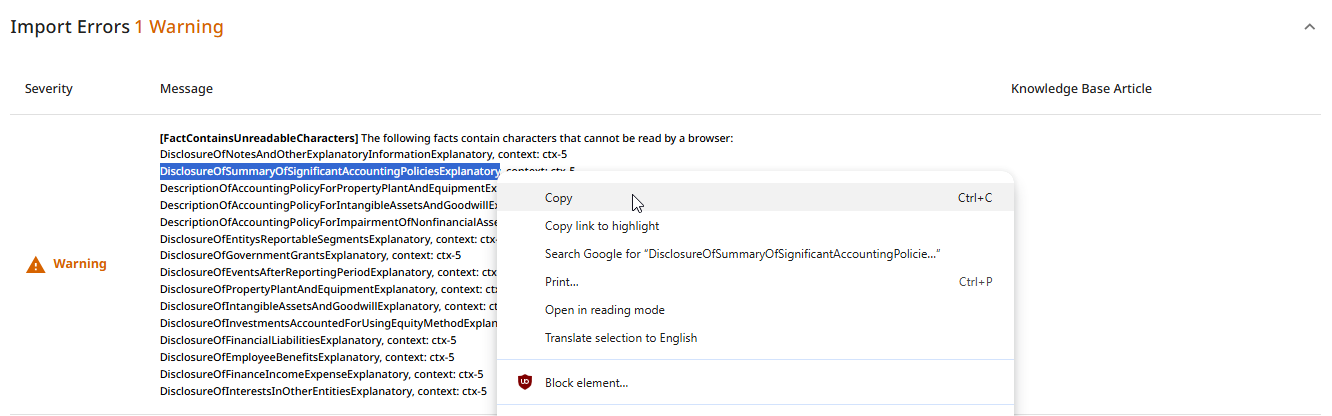

3. On the Validation Summary page, go to “Import Errors” and copy the name of the element (or one of the elements) that appears in the “FactContainsUnreadableCharacters” message, (in this case, DisclosureOfIncomeTaxExplanatory).

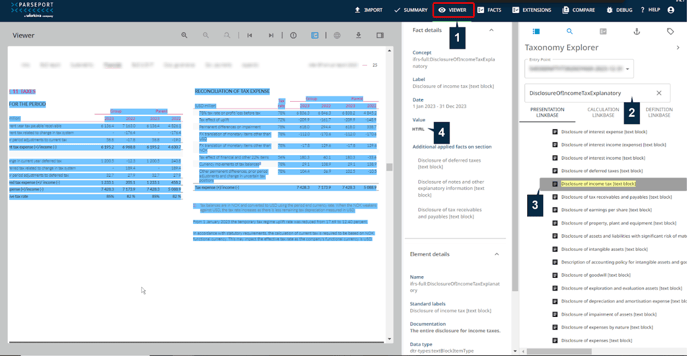

   1. Go to the Viewer tab.
   2. Open the sidebar and paste the element into the search box.
   3. Scroll to the highlighted element and click on it.
   4. O visualizador levará você diretamente ao elemento etiquetado no relatório.
4. Click on the HTML button in the secondary sidebar.

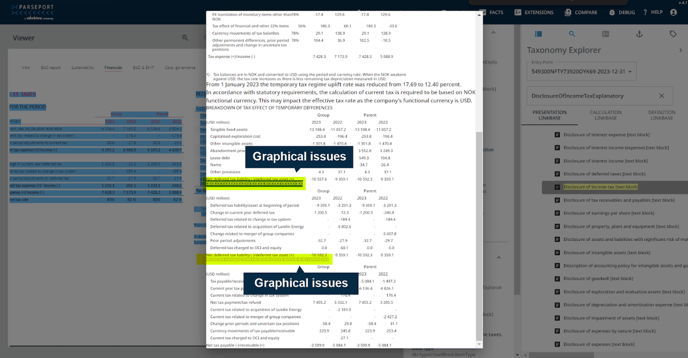

5. In the window that appears, look for the square character (□), which represents a graphical issue.


How to fix these in InDesign and Microsoft Word

• If you use InDesign, here is a guide on how to avoid and/or get rid of these graphical issues: Recommendations  for designers.
• If you use Word, the most common causes of graphical issues are bullet points. We recommend that you use numbers or characters rather than bullet points for numbering.
