Connector to SAP Business Warehouse

With the SAP® Business Warehouse® connector, you can use an Execute MDX Query command in a chain to perform multidimensional expressions (MDX) queries to extract comma-separated values (CSV) data from SAP NetWeaver® Business Warehouse (BW).

Note: This connector is built by Workiva and connects to a third-party system. While our Support team can help configure this connector within your workspace, we are unable to troubleshoot or otherwise assist with any issues that originate outside of the Workiva platform.

Prerequisites

To enable the connection, the connector uses the SAP BW REST API via remote function call (RFC). To set up the connector, you'll need:

• A designated RFC destination set up in SAP NetWeaver BW for the connector
• The internet protocol (IP) address or hostname of the SAP NetWeaver environment to connect to
• The client ID to use with the RFC connection
• The instance number of the RFC destination
• A designated integration user set up in SAP BW for the connector, with permission to:
  • Access the data being queried
  • Execute Business Application Programming Interface (BAPI) functions RSR_MDX_CREATE_OBJECT, RSR_MDX_GET_AXIS_INFO, RSR_MDX_GET_FLAT_DATA, and BAPI_MDDATASET_DELETE_OBJECT
• The integration user's authentication credentials
• A GroundRunner set up for the connector

  Note: We recommend you install the GroundRunner on a dedicated server in the same network as the SAP BW environment.

• SAP Java® connector (Jco) installed on the same server as the GroundRunner

Note: This connector is only compatible with the non-HANA versions of SAP BPC NW/MS 10.0 or SAP BPC 10.1 NW.

Set up an SAP Business Warehouse connector

Note: To make the connector available for use in your organization's chains, an org security administrator first enables it from Configuration.

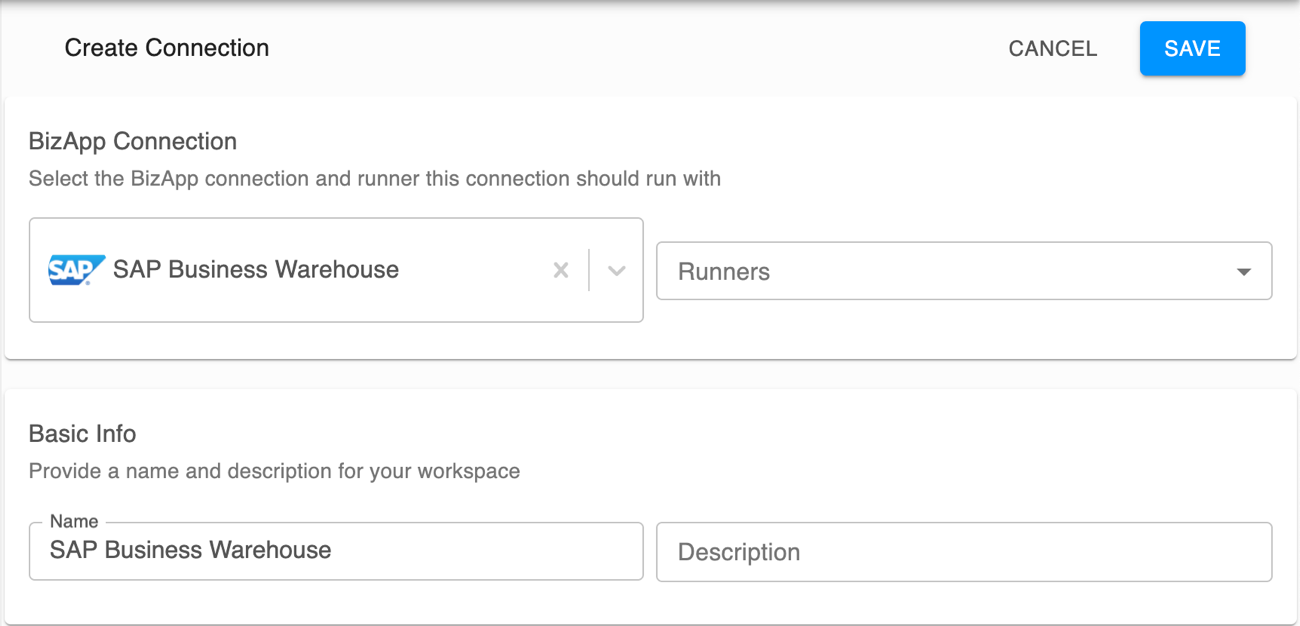

1. From Chain Builder, click Connections  compare_arrows, and then Create at the top right.
2. Under BizApp Connection, select SAP Business Warehouse and the GroundRunner to use with the connector.

3. Under Basic Info, enter a unique name and description to help identify the connection.

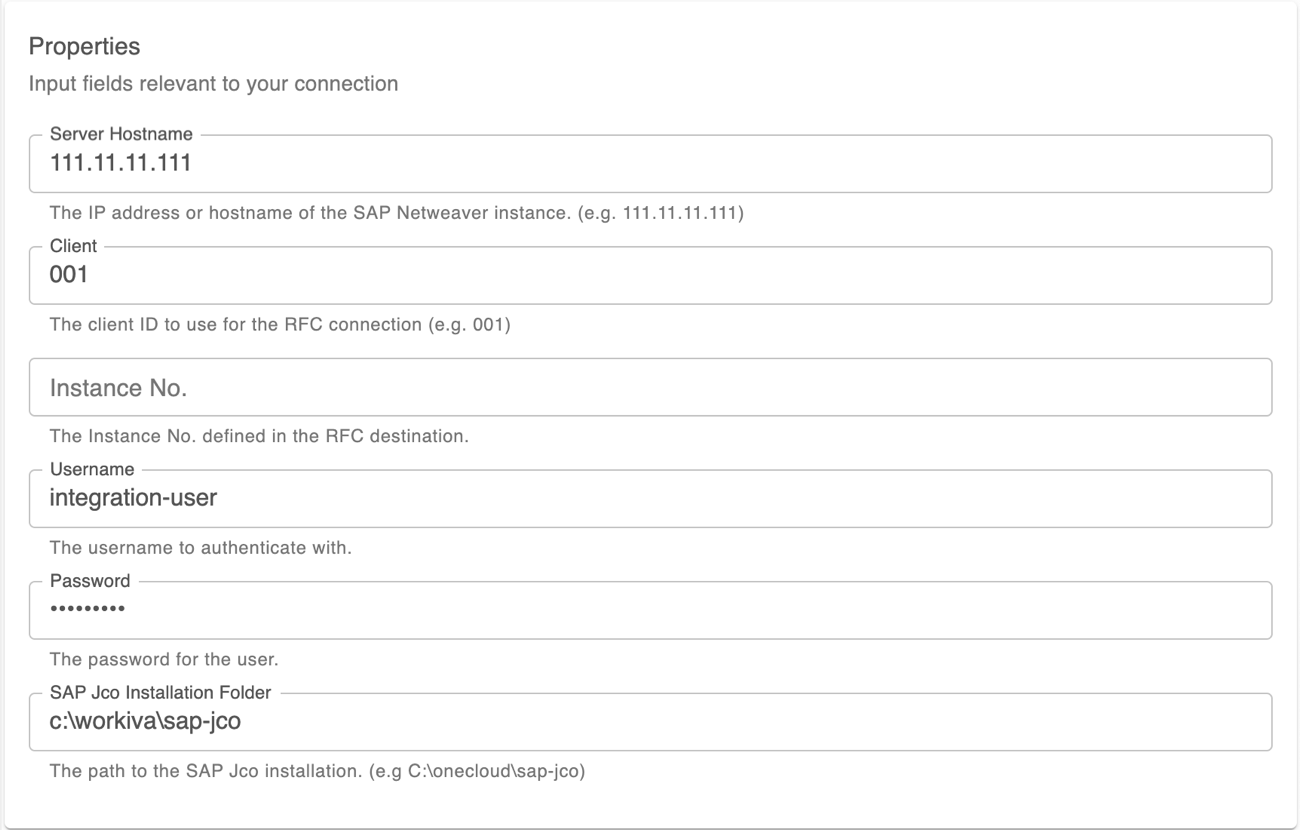

4. Under Properties, enter the connector's details:



   Property	Details
   Server hostname	Enter the IP address or hostname of the SAP NetWeaver BW instance to connect to, such as 111.11.11.111.
   Client	Enter the client ID to use with the RFC destination set up in SAP NetWeaver BW, such as 001.
   Instance no.	Enter the instance number of the RFC destination.
   Username	Enter the username for the connector's integration user.
   Password	Enter the password of the Username property.
   SAP Jco installation folder	Enter the full path to the SAP Java connector (Jco) installation on the GroundRunner's server, such as C:\workiva\sap-jco.

   Note: All sensitive credentials are automatically encrypted and stored at Advanced Encryption Standard (AES)-256 encryption.

5. Select the environments to use with the connection, and click Save.

Troubleshooting

If the connection to SAP NetWeaver BW fails:

• Verify the integration user's authentication credentials.
• Check the IP address or hostname of the SAP NetWeaver BW instance.
• Check the RFC destination's client ID and instance number.
• Check the GroundRunner selected for the connector.
• Verify the path to the SAP Jco installation on the GroundRunner's server.
