Connector to IBM Db2

With the IBM® Db2® connector, you can use commands in a chain to perform structured query language (SQL) operations in a Db2 relational database. For example, with this connector, you can:

Execute SQL commands, including a CREATE or UPDATE statement or SELECT query
Retrieve details about a table in Db2
Insert records in the Db2 database

Note: This connector is built by Workiva and connects to a third-party system. While our Support team can help configure this connector within your workspace, we are unable to troubleshoot or otherwise assist with any issues that originate outside of the Workiva platform.

Prerequisites

To enable the connection to IBM Db2, the connector uses Java database connectivity (JDBC), secured with basic username and password authentication. To set up the connector, you'll need:

A designated integration user set up in IBM Db2 for the connector
The integration user's username and password
The JDBC connection's URL, such as jdbc:db2://host:port/database
To connect to an on-premise instance of IBM Db2, a GroundRunner for the connection

Note: To connect to a cloud instance of IBM Db2, use the default CloudRunner.

Set up the IBM Db2 connector

Note: To make the connector available for use in your organization's chains, an org security administrator first enables it from Configuration.

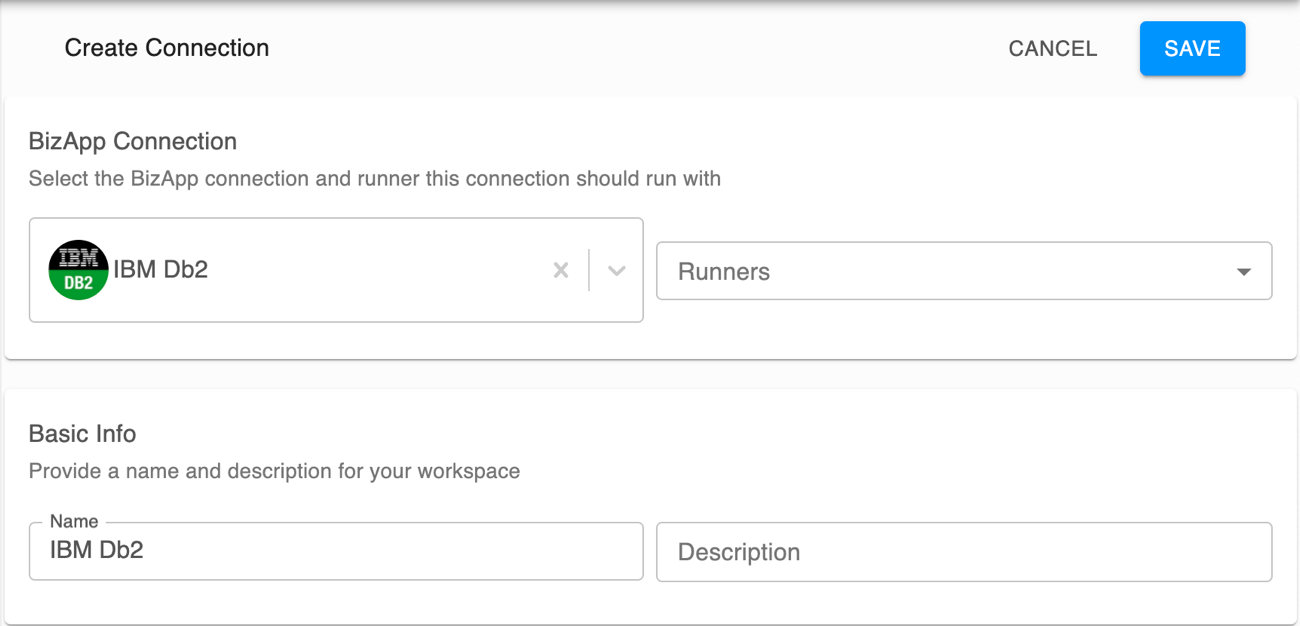

From Chain Builder, click Connections compare_arrows, and then Create at the top right.
Under BizApp Connection, select IBM Db2 and the runner to use with the connection.
Under Basic Info, enter a unique name and description to help identify the connection.

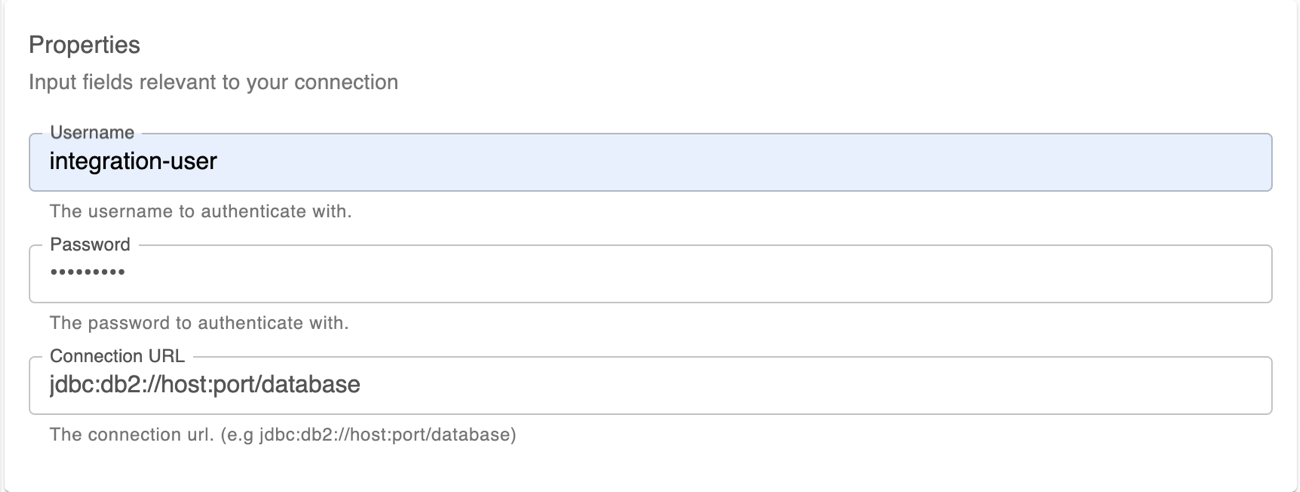

Under Properties, enter the connector's details:

Property	Details
Username	Enter the username of the connector's IBM Db2 integration user.
Password	Enter the password for the Username property.
Connection URL	Enter the URL for the JDBC connection with any optional properties appended with a semicolon, such as `jdbc:db2://host:port/database;property=value`. Note: Typically, the port for IBM Db2 is `446`, `6789`, or `50000`; however, this may be different for your environment. To use the default port for the database server, omit the `port` value from the connection URL.

Note: All sensitive credentials are automatically encrypted and stored at Advanced Encryption Standard (AES)-256 encryption. For security purposes, avoid including user credentials as optional properties within the Connection URL input.

Select the environments to use with the connection, and click Save.
To test the connection, create and run a chain with the connector's Get Table Definition command, and verify it returns a valid output.

Troubleshooting

If the connection to IBM Db2 fails:

Verify the integration user's authentication credentials
Check the URL for the JDBC connection, including its server and port

If the connection fails to perform a command, verify its inputs—such as its SQL syntax or table—are valid.
