Connector to SnapLogic

With the SnapLogic® connector, you can use commands in a chain to run SnapLogic pipelines and retrieve or query pipelines' run history.

Note: This connector is built by Workiva and connects to a third-party system. While our Support team can help configure this connector within your workspace, we are unable to troubleshoot or otherwise assist with any issues that originate outside of the Workiva platform.

Prerequisites

To enable the connection, the connector use the SnapLogic REST API. To set up the connection, you'll need:

• A SnapLogic integration user
• The integration user's authentication credentials

Set up the SnapLogic connector

Note: To make the connector available for use in your organization's chains, an org security administrator first enables it from Configuration.

1. From Chain Builder, click Connections  compare_arrows, and then Create at the top right.
2. Under BizApp Connection, select SFTP Connector and the default CloudRunner.

3. Under Basic Info, enter a unique name and description to help identify the connection.

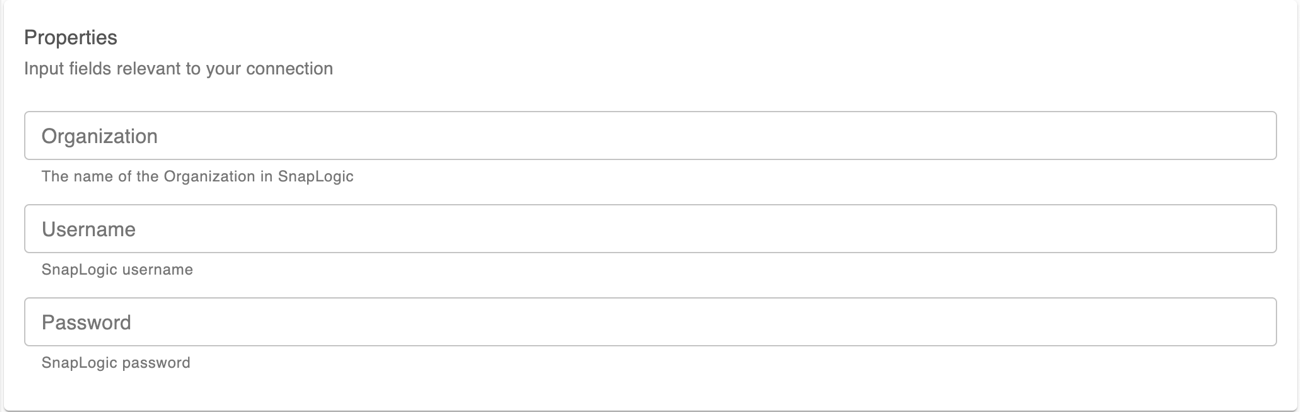

4. Under Properties, enter the connection's details:



   Property	Details
   Organization	Enter your organization's name as it appears in SnapLogic.
   Username	Enter the username of the integration user the connector should use.
   Password	Enter the password for the Username property.

   Note: All sensitive credentials are automatically encrypted and stored at Advanced Encryption Standard (AES)-256 encryption.

5. Select the environments to use the connection, and click Save.
6. To test the connection, create and run a chain with the connector's Get Logs command, and verify it returns a valid output.

Troubleshooting

If the connection to SnapLogic fails:

• Verify the integration user's authentication credentials.
• Ensure the connector's Organization property matches your organization's name in SnapLogic.
