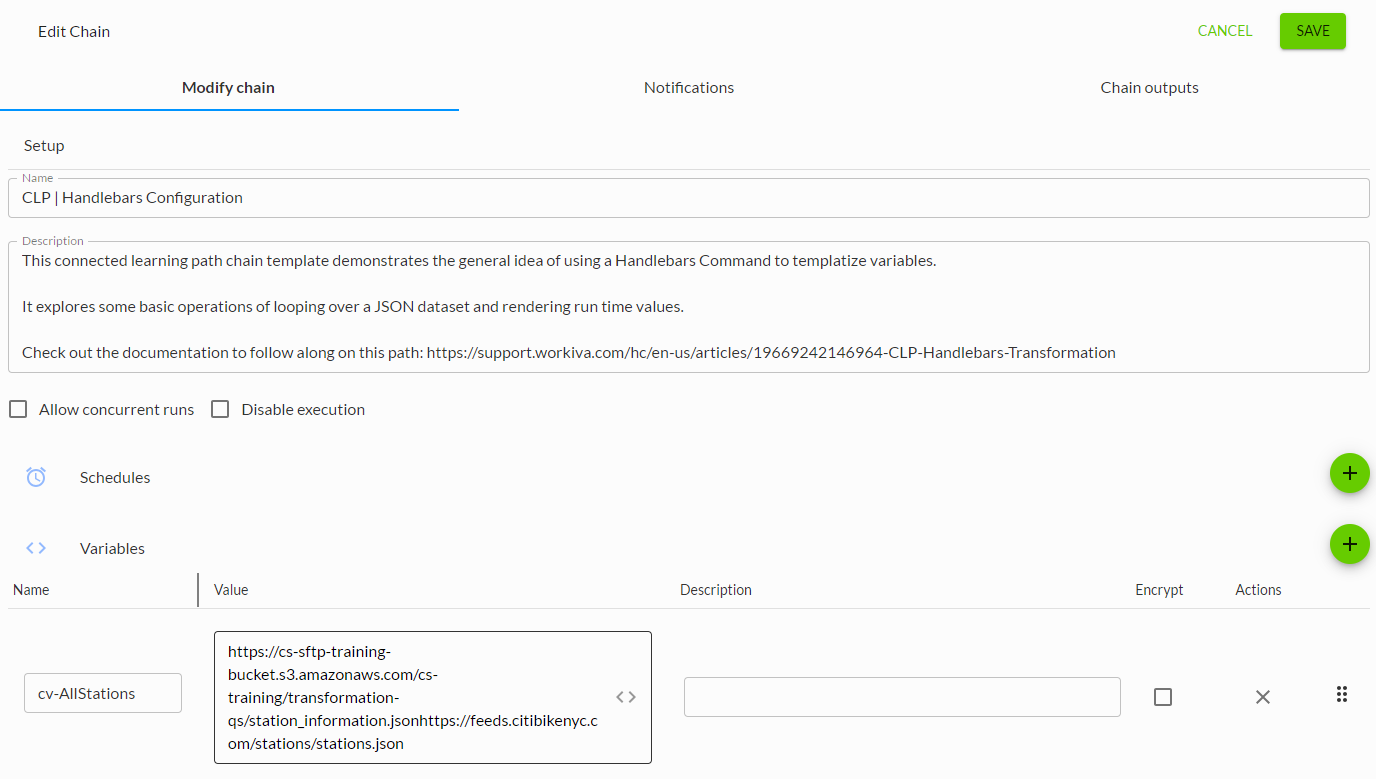

Step 1: Create a Chain

• Add a new Chain
• Name the Chain: CLP | Handlebars Configuration
• Create a chain variable
  • Name: cv-AllStations
  • Value: https://cs-sftp-training-bucket.s3.amazonaws.com/cs-training/transformation-qs/station_information.json
• Save the Chain

Step 2: Retrieve JSON Data

We use the HTTP Connector to retrieve city bike related data in JSON format from a web location.

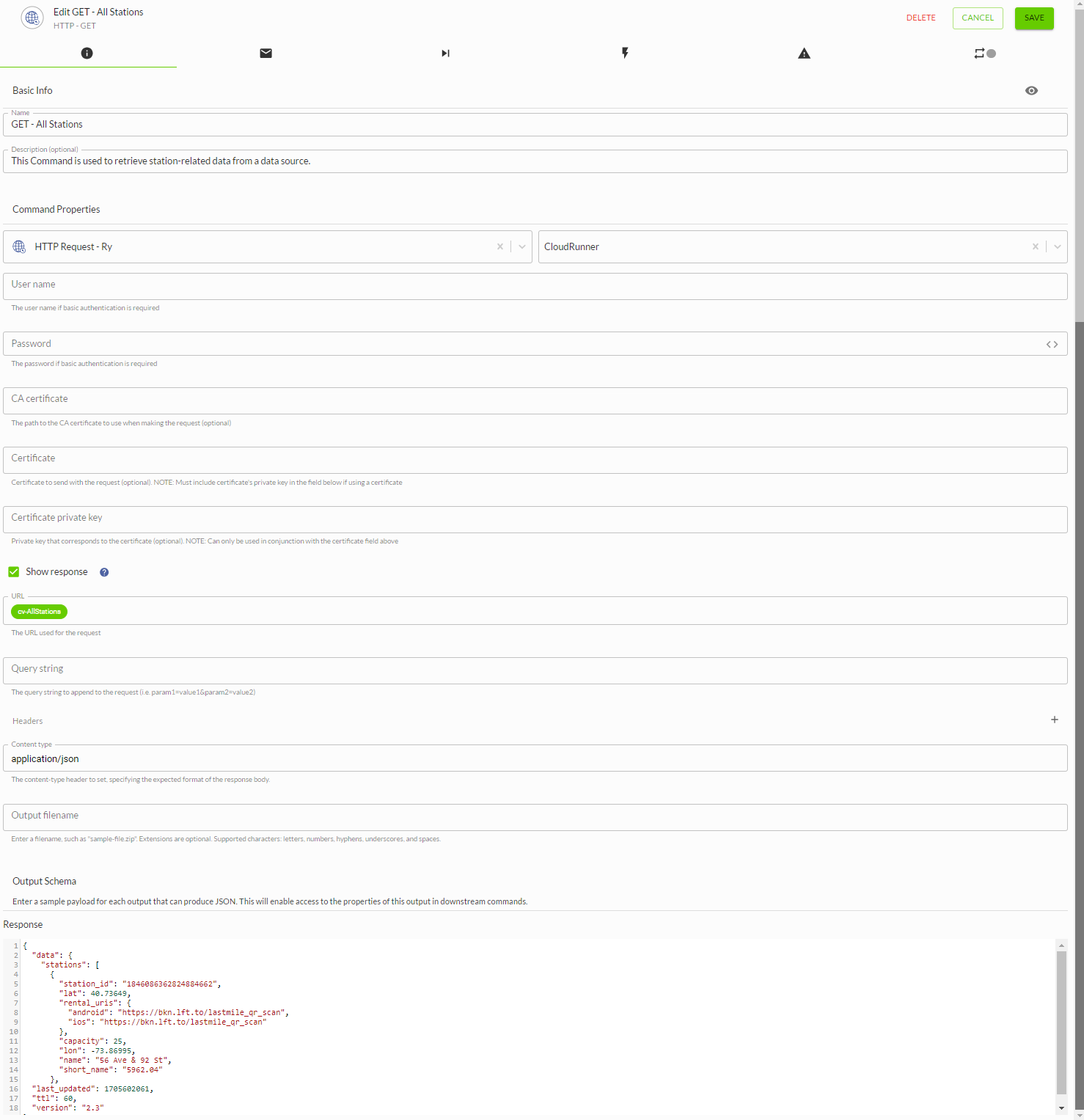

• Add a GET Command from the HTTP Connector to the Start node
• Configure the Command with the following:

• Save the command

Step 3: Iterate through JSON data

Use the Handlebars - Render Text template Command to iterate through the CitiBike station data to provide a format that provides each individual stations data combined.

• Add the Handlebars - Render Text Template Command to the Chain canvas
• Connect the GET - All Stations Command to the Handlebars - Render Text Template Command
• Double click the Command to edit it

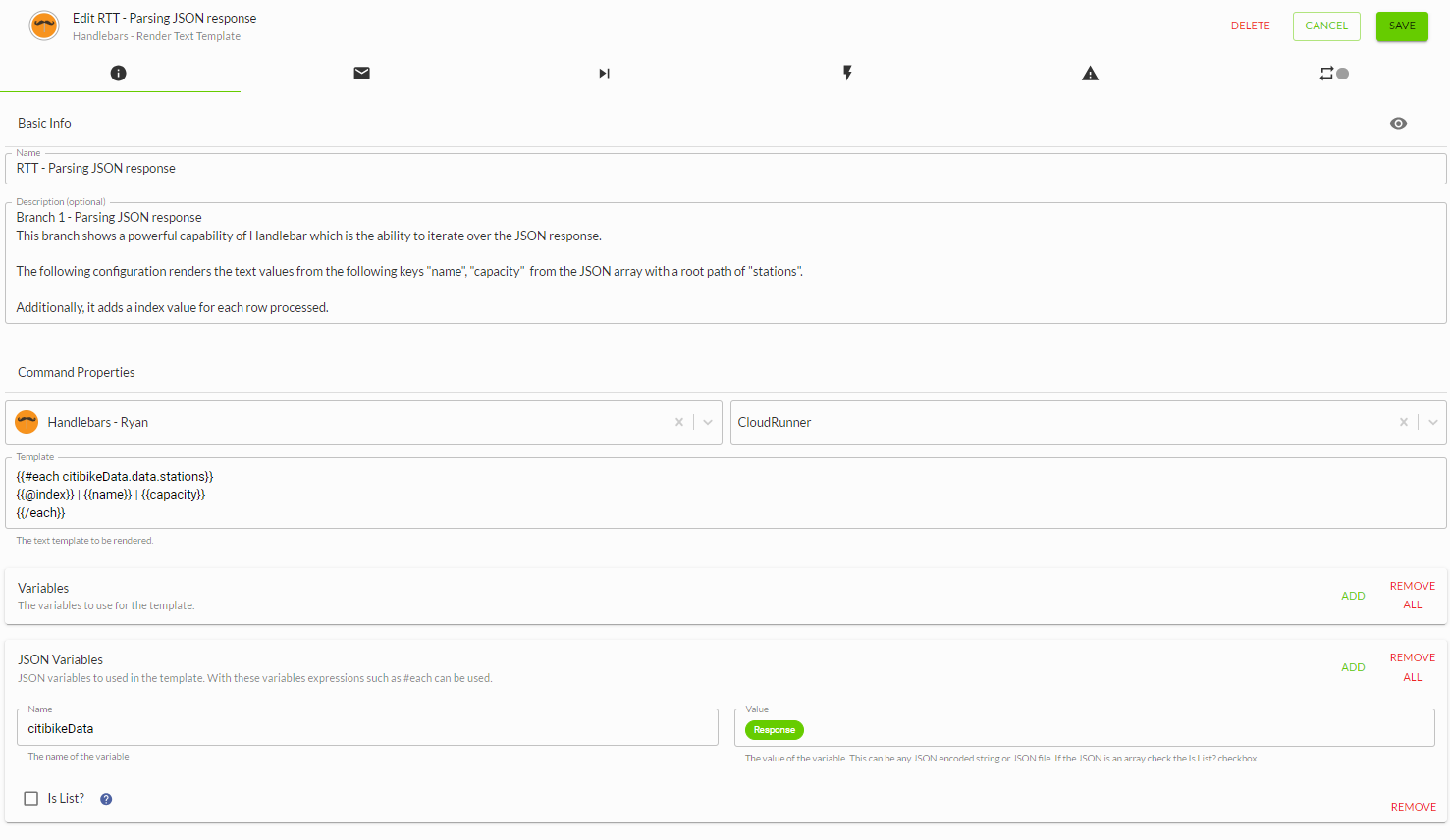

  • Name the Command: RTT - Parsing JSON Response
  • Add a JSON Variable and name it “citibikeData”
  • For the Value field use the Response variable from the Get - All Stations Command
  • Fill out the template field with the following value:

• • • This will allow the Command to iterate through the JSON response, using a root path of data.stations to provide text values from each key: (“name”, “capacity”)

      • Additionally, it will add an index value for each row processed
• Save the Command

Step 4: Templatizing Runtime Variables

Use the Handlebars - Render Text Template to templatize variables. This will allow the user to render a text template that provides context on different components of the Chain based on its runtime.

• Add the Handlebars - Render Text Template Command to the Chain canvas
• Connect the GET - All Stations Command to the Handlebars - Render Text Template Command
• Double click the Command to edit it
  • Name the Command: RTT - Templatizing Variables
  • Add and populate the following information for the variables section:
    • The “Value” fields will be populated from the “Runtime” dropdown of the left variables pane
    • Variable 1
      • Variable Name: Chain-Env
      • Value: <Chain.Enviroment> (Runtime Variable)
    • Variable 2
      • Variable Name: Chain-Exec-Time
      • Value: <Chain.ExecutionDateTime> (Runtime Variable)
    • Variable 3
      • Variable Name: System-RunTime-Month
      • Value: <System.DateTime> (Runtime Variable)
        • Click on the <System.DateTime> runtime variable to transform the variable
        • On Select Transformation, choose Parse Date/Time
          • Click the “+”
        • In the first value field, choose “ISO Extended (Platform Standard)"
        • In the Output date format field, enter “%m”
        • In the Input date timezone field, choose “UTC (Etc/UTC)”
        • In the Output date timezone field, choose “UTC (Etc/UTC)”
        • Click Accept
    • Variable 4
      • Variable Name: “System-RunTime-Year”
      • Value: <System.DateTime> (Runtime Variable)
        • Click on the <System.DateTime> runtime variable to transform the variable
        • On Select Transformation, choose Parse Date/Time
          • Click the “+”
        • In the first value field, choose “ISO Extended (Platform Standard)
        • In the Output date format field, enter “%Y”
        • In the Input date timezone field, choose “UTC (Etc/UTC)”
        • In the Output date timezone field, choose “UTC (Etc/UTC)”
        • Click Accept
  • Fill out the template field with the following value

• Save the Command

Step 5: Templatizing Workspace Variables - Get Workspaces

Use the Handlebars - Render Text Template to templatize components of a Workspace. This will allow the user to render a text template that provides context from different components of the Workspace that the Chain is located in.

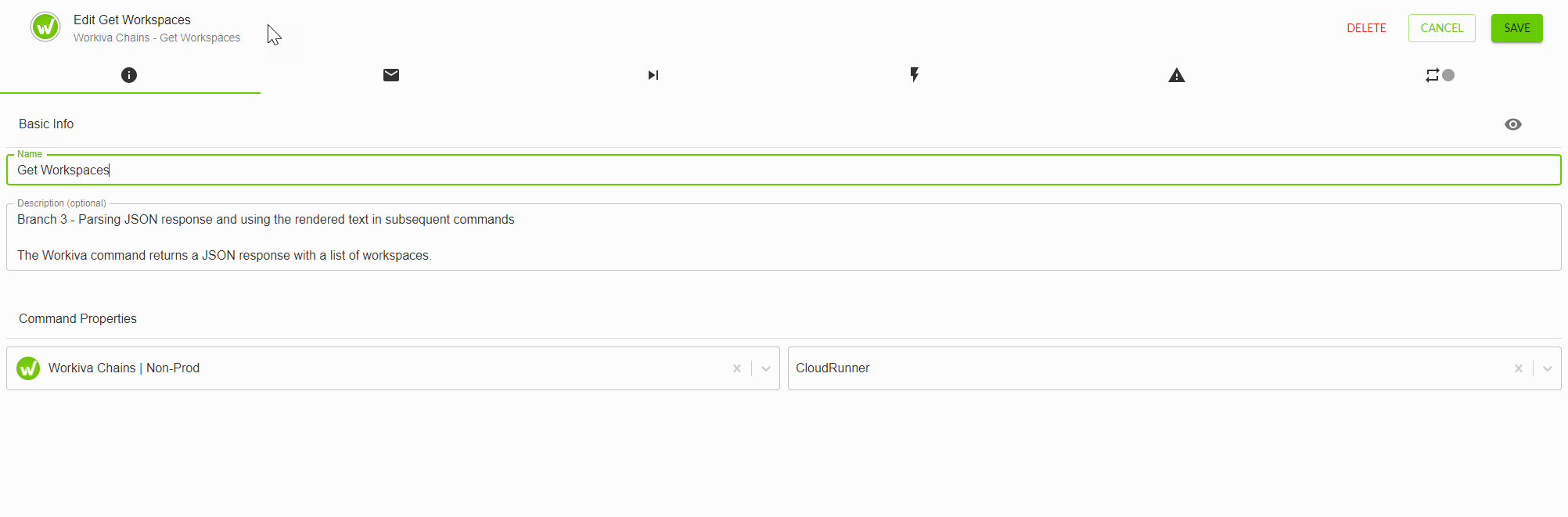

• Add the Get Workspaces Command from the Workiva Chains Connector to the Chain canvas
• Connect the GET - All Stations Command to the Get Workspaces Command
• Double click the Command to edit it
  • Double check the Connection is correct
• Save the Command

Step 6: Templatizing Workspace Variables - RTT - WorkspaceID

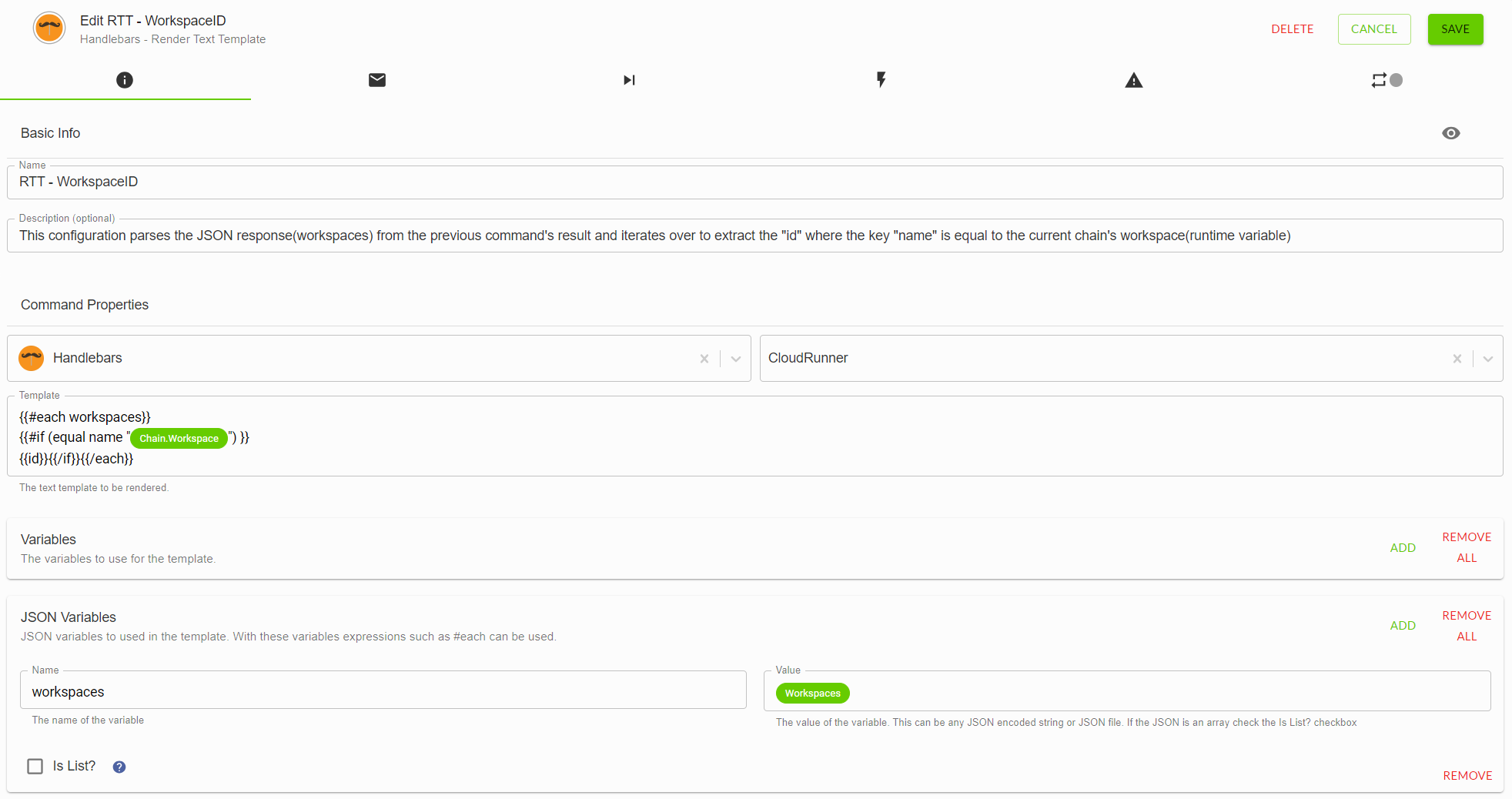

• Add the Handlebars - Render Text Template Command to the Chain canvas
• Connect the Get Workspaces Command to the Handlebars - Render Text Template Command
• Double click the Command to edit it
  • Name the Command “RTT - WorkspaceID”
    • Enter the following value into the “Template” field:

• • Select the <Chain.Workspace> variable from the runtime variables section in the left panel
  • Add a JSON Variable
    • Fill in the following information:
      • Name: workspaces
      • Value: <Workspaces>
        • Expand the Get Workspaces variable from the variables panel on the left and select Workspaces
• Save the Command

Step 7: Templatizing Workspace Variables - Get Environments

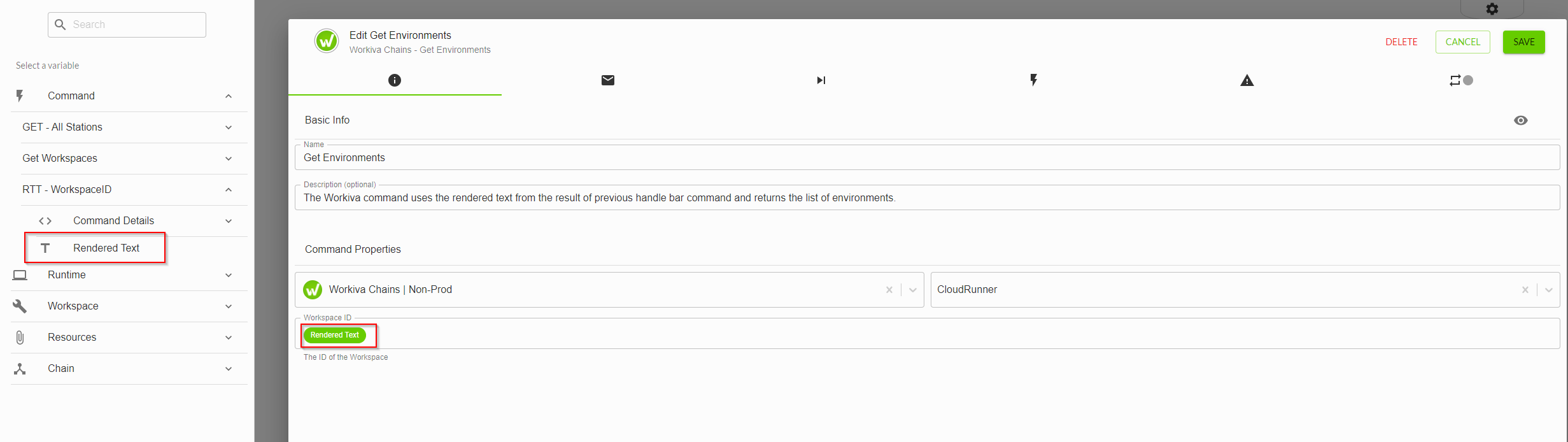

• Add the Get Environments Command from the Workiva Chains Connector to the Chain canvas
• Connect the RTT - WorkspaceID Command to the Get Environments Command
• Double click the Command to edit it
  • Add the Rendered Text variable from the RTT-WorkspaceID Command within the Workspace ID field
• Save the Command

Step 8: Templatizing Workspace Variables - RTT - EnvironmentID

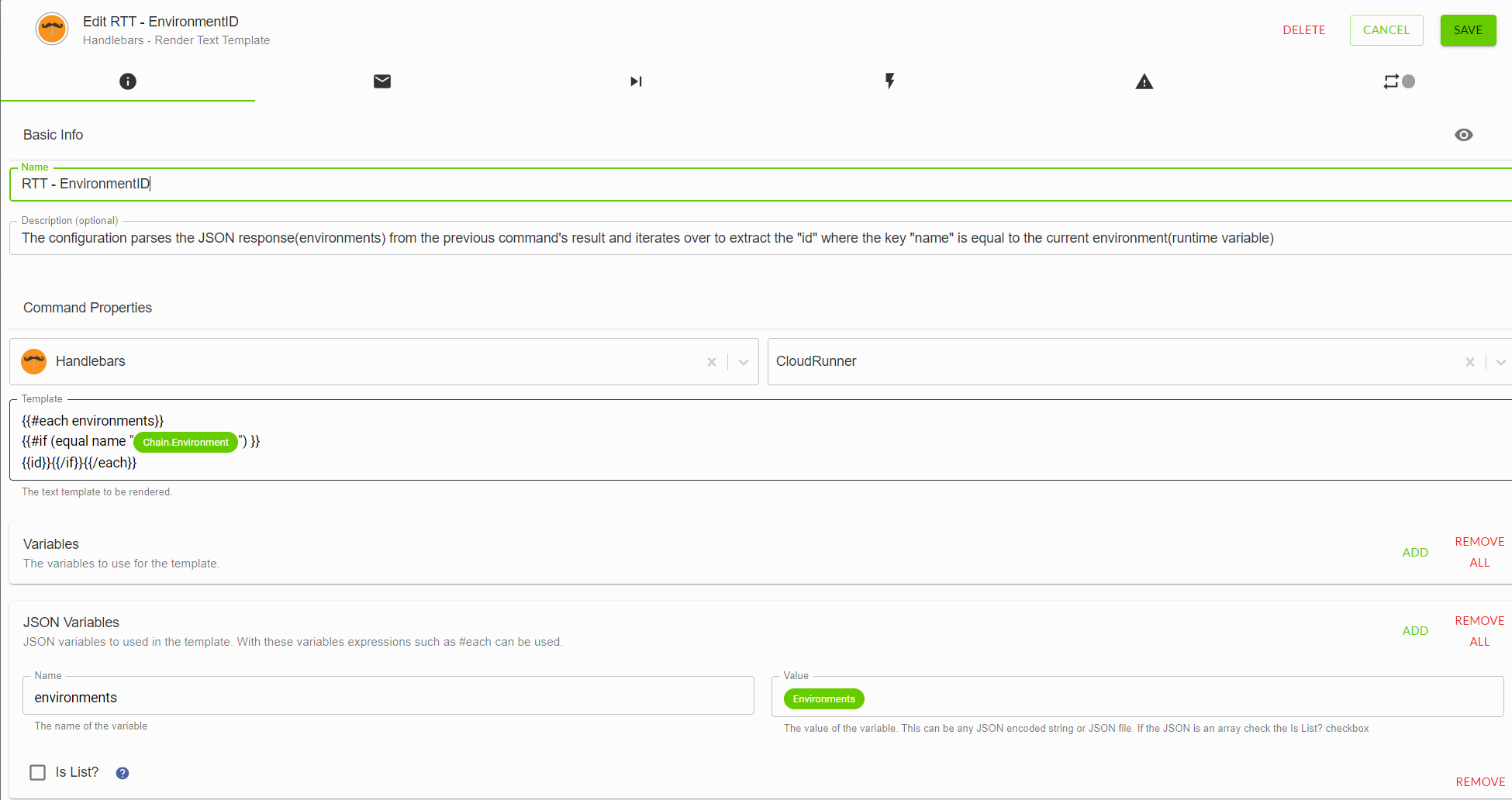

• Add the Handlebars - Render Text Template Command to the Chain canvas
• Connect the Get Environments Command to the Handlebars - Render Text Template Command
• Double click the Command to edit it
  • Name it “RTT - EnvironmentID”
  • Enter the following value into the “Template” field:

• • • The <Chain.Environment> is a runtime variable, found on the left panel
  • Add a JSON Variable
    • Fill in the following information:
      • Name: environments
      • Value: <Environments>
        • This is found on the left variable panel under the Get Environments Command
• Save the Command

Step 9: Test the Exercise

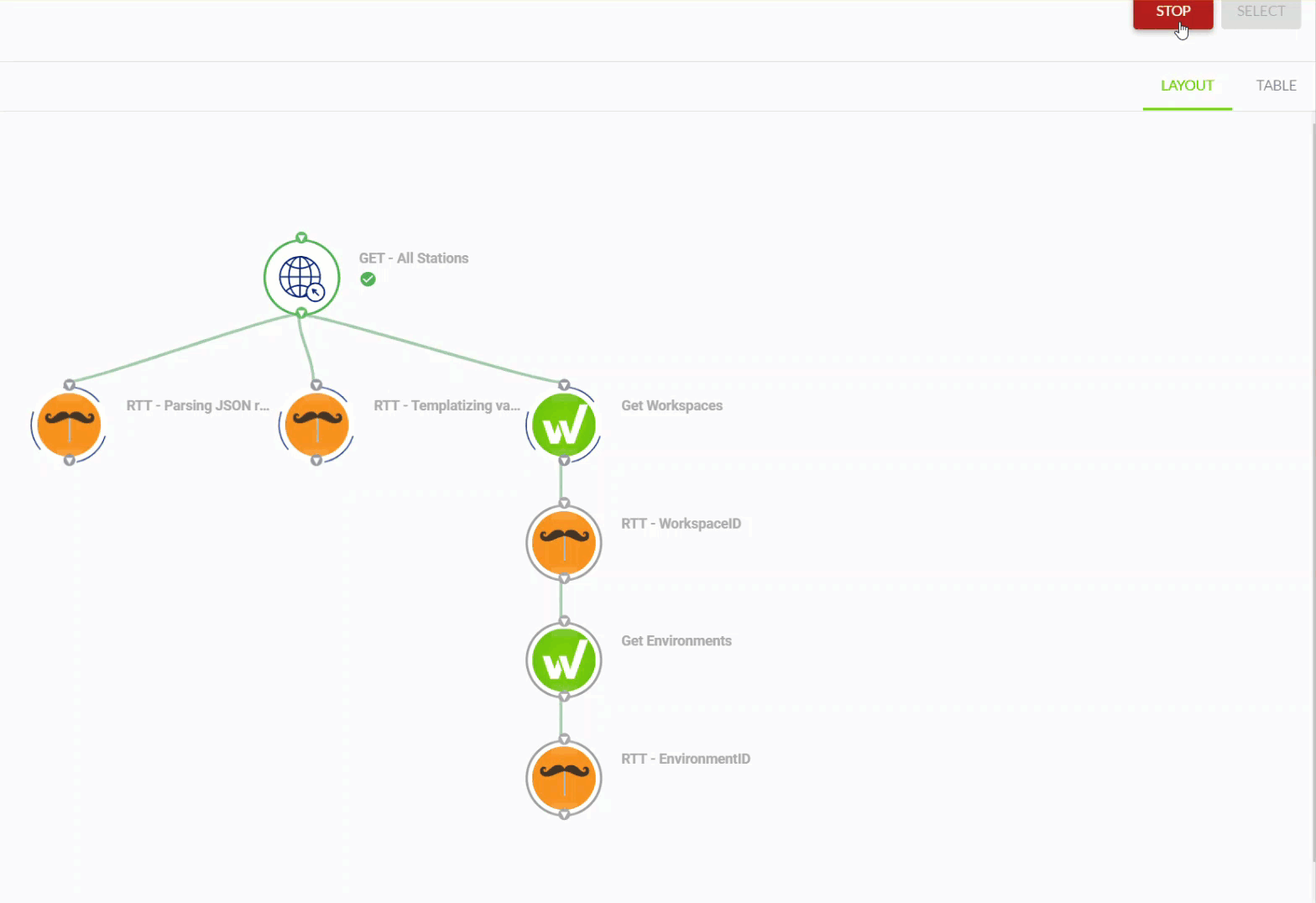

• Publish the Chain
• Click Execute and then select Run Chain
• Once the Chain has completed:
  • Confirm that all nodes were successfully executed

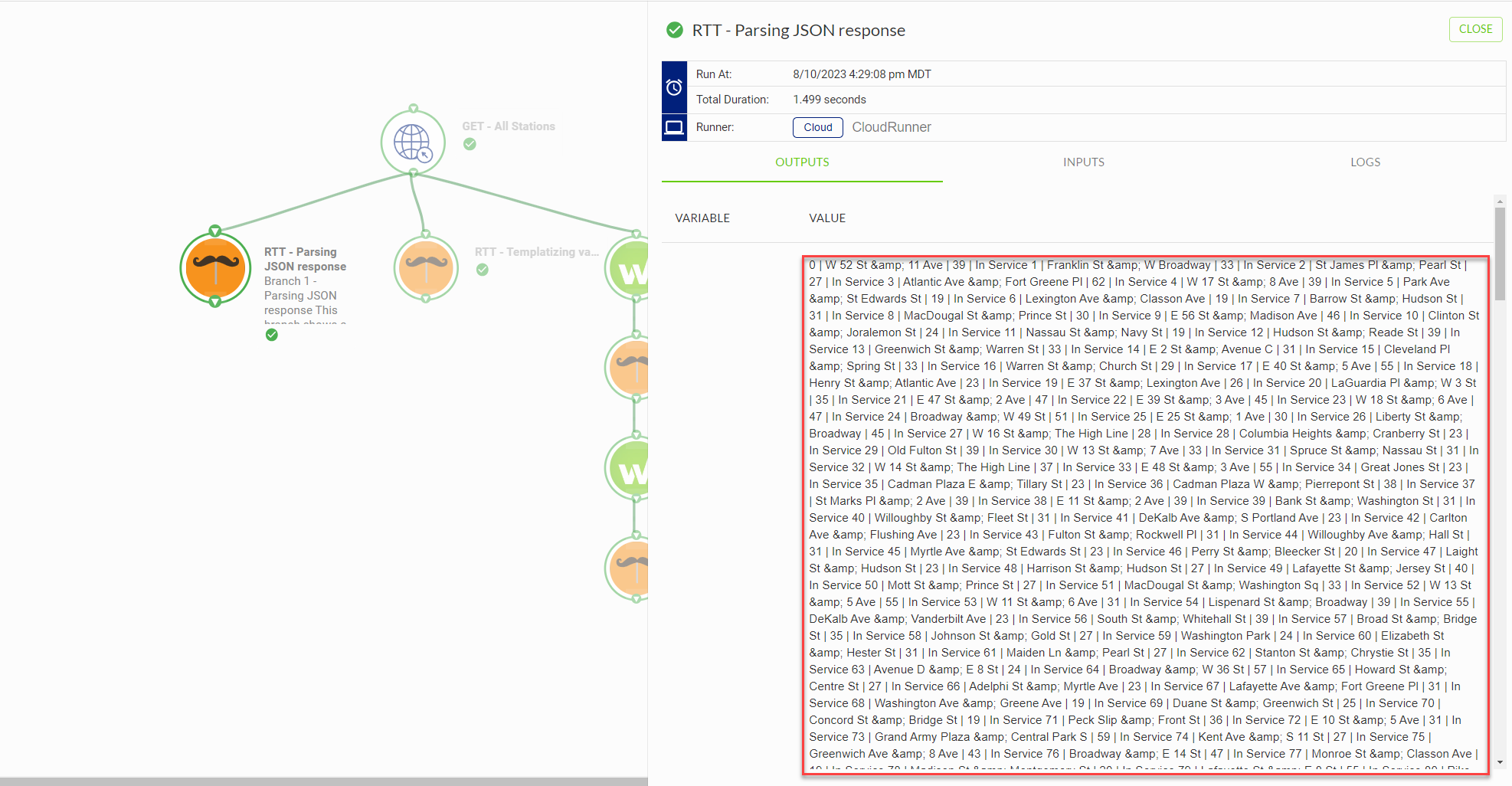

    • Click on the executed RTT - Parsing JSON Response command
      • Verify that the first few lines of the output is as follows:

• • • Click on the executed RTT - Templatizing Variables Command
      • Verify that the rendered text is accurate within the “Logs” tab

• • • • These values will be change based on which Environment the Chain is run in and when it is run
    • Click the RTT - Environment ID node and select the Outputs tab
      • Confirm that a value has populated for the rendered text variable (this result will vary depending on the user’s Environment)

To learn more about data transformation using Chains, check out the Connected Learning Paths - Transformation Introduction!
